Instrument cluster Suzuki GSX-R 750 (J, K, L)

Instrument cluster for Suzuki GSX-R 750, years 1988 to 1990, 750cc.

So that there can be no mistakes, this is what the Suzuki parts catalogue says:

— The complete assembly, as sold here, is the L model one, from 1990.

— The speedometer, reference 34110-17C20, is the same on all three models: J, K and L.

— The tachometer is reference 34110-17C30.

— The warning light box DOES change: the J and the K use 36380-17C20, and the L, which is the one in this assembly, uses 36380-32C10.

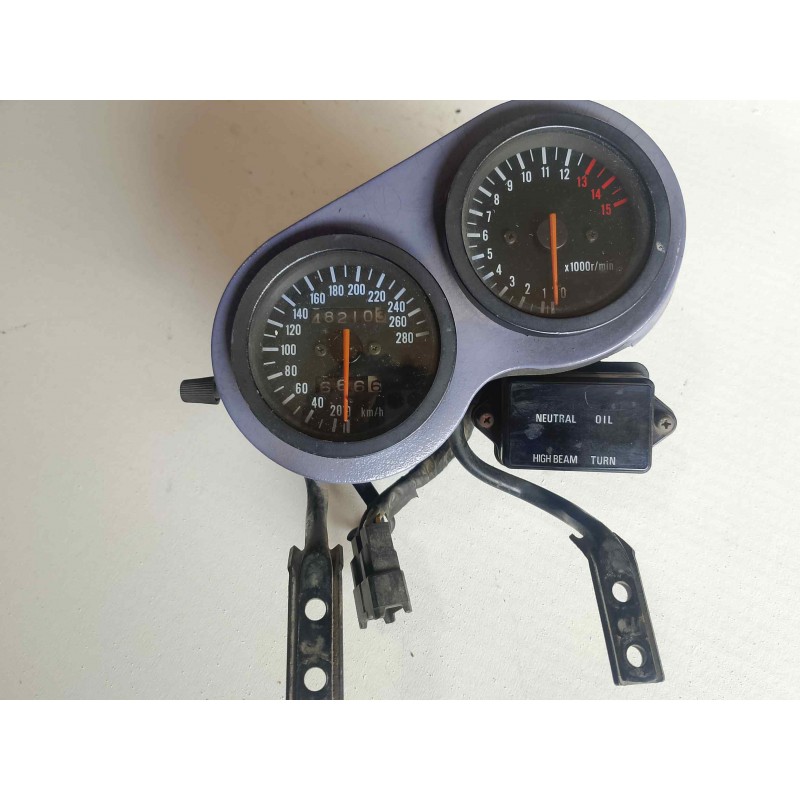

It is complete: the speedometer in kilometres up to 280, the tachometer up to 15,000, the warning light box with NEUTRAL, OIL, HIGH BEAM and TURN, the brackets and the connector. The mileage shown can be seen in the photos.

Used part, with marks of use consistent with its age. See photos.

(Ref. Suzuki speedometer: 34110-17C20) (Ref. Suzuki tachometer: 34110-17C30) (Ref. Suzuki warning light box: 36380-32C10)
